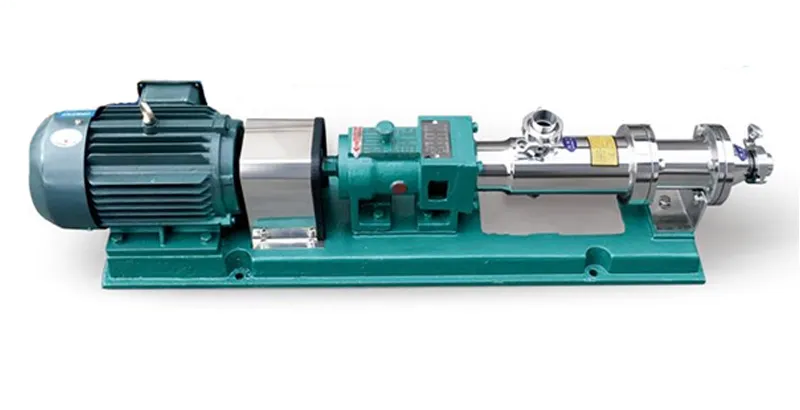

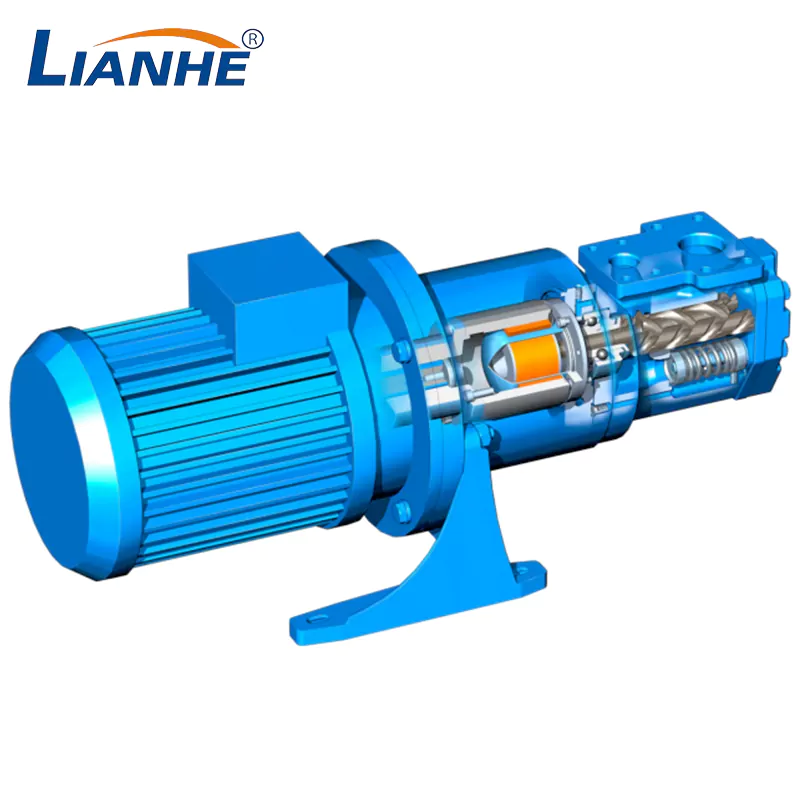

Industrial SUS Food Grade Helical Grease Single Screw Pump
Industrial SUS Food Grade Helical Grease Single Screw Pump - Image 2
Industrial SUS Food Grade Helical Grease Single Screw Pump - Image 3
Industrial SUS Food Grade Helical Grease Single Screw Pump - Image 4

Industrial SUS Food Grade Helical Grease Single Screw Pump



Place of Origin:Guangdong, China
Brand Name:LIANHE
Condition:New
Product Type:Cosmetic
Weight (KG):55
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:Gear, Pump
Warranty:1 Year
Key Selling Points:Long Service Life
Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Other
Name:Centrifugal Pump
Application:Chemical Industries
Function:Transport
Keywords:Pump
Capacity:3-20Ton/h
Raw Material:Stainless Steel 316L
Category: Tags: , ,
Screw Pump
Simple structure, easy to manufacture, large flow, small head loss, high efficiency, easy to repair and maintain

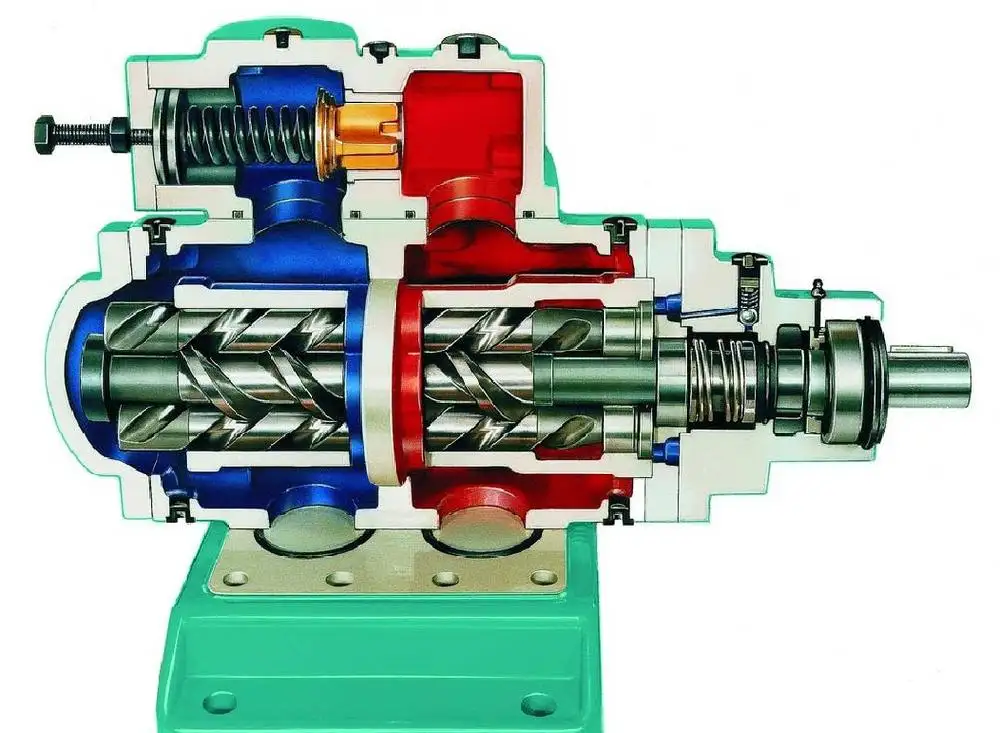

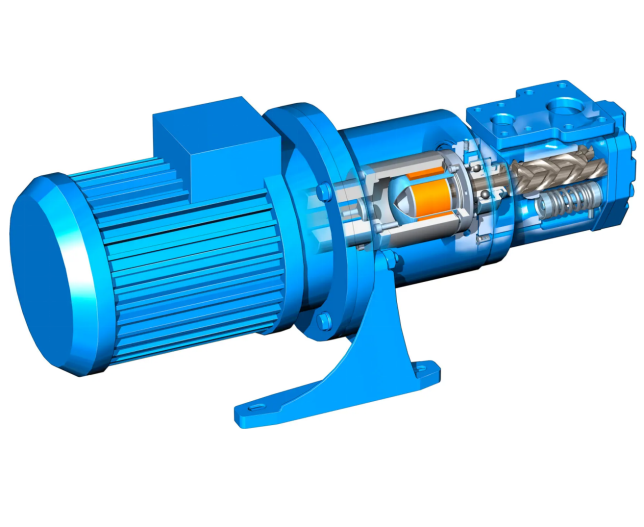

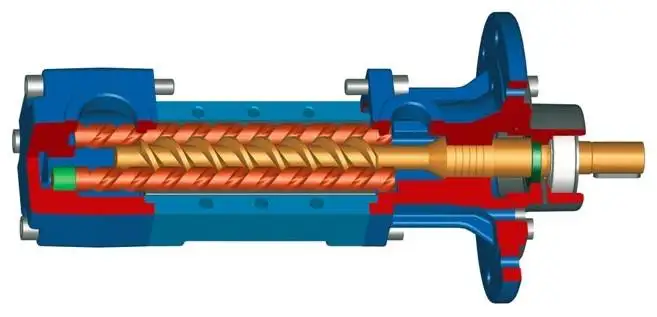

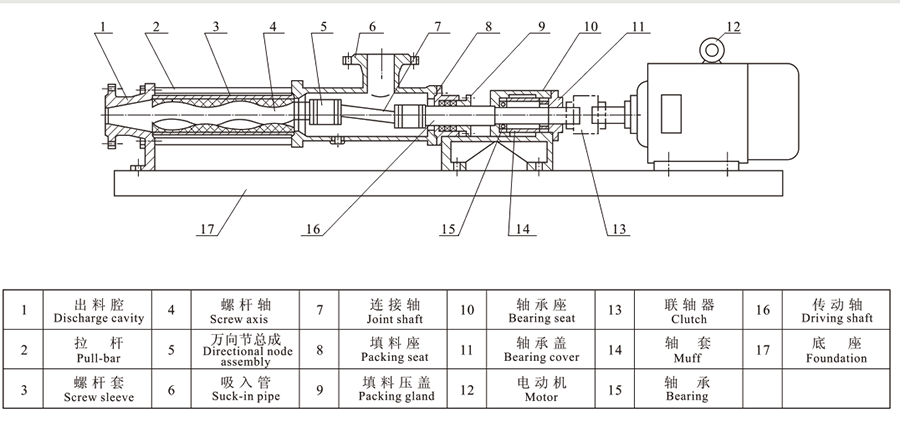

The screw pump is a pump that uses the rotation of the helical blades to make the fluid rise in a spiral shape along the axial direction. It consists of a shaft, a spiral blade and a casing. When the motor drives the screw pump shaft to rotate, the fluid enters the blade and rises along the helical flow channel until it is transported out.

①Low speed (generally 20r/min～90r/min), small mechanical wear and no cavitation.

②The flow channel is wide, which can transport water containing solids.
③The structure of the pump body is half-open, and the operation of the pump can be observed.
④ The flow state on the suction side has little effect on the hydraulic performance, there is no special requirement for the suction pool, the foundation excavation depth is small, the construction of hydraulic structures is simple, and the civil construction cost is low.
Advantage:
The screw pump is a new type of liquid conveying machine, which has the advantages of simple structure, safe and reliable operation process, convenient use and maintenance, continuous and uniform liquid output, and stable pressure.

The screw pump is widely used in the transportation of water, wet sludge and flocculant liquid in sewage treatment plants because of its characteristics of variable amount transportation, strong self-priming ability, reversibility, and the ability to transport liquids containing solid particles. .Choosing a reasonable and reliable screw pump according to the actual needs of production can not only ensure the smooth progress of production, but also reduce the repair cost.

LIANHE 30-50L Hydraulic Type Cream Vacuum Emulsifying Mixer Manufacturer
LIANHE 30-50L Hydraulic Type Cream Vacuum Emulsifying Mixer Manufacturer
LIANHE 30-50L Hydraulic Type Cream Vacuum Emulsifying Mixer Manufacturer
LIANHE 30-50L Hydraulic Type Cream Vacuum Emulsifying Mixer Manufacturer

LIANHE Machinery is a scientific enterprise specialized in research, development, production and management of cosmetic, food and pharmaceutical machinery, filling machinery and packing machinery.

It has complete machining equipment, perfect technological flow, powerful technology ability, excellent product development and design ability as well as rich production experience.
Our company took the lead among same traders in obtaining special equipment manufacturing license(Class I and Class II pressure vessels) of China.

Q1: Are you a factory?

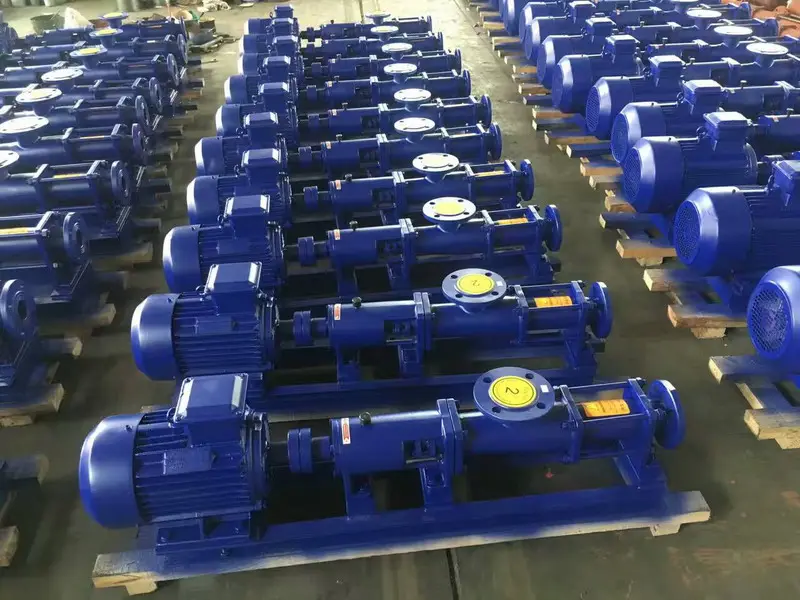

A1: Yes we are a factory with more than 20 years manufacturing experience. One is in Jiangsu Province,
Another is in Guangzhou next to our office.

Q2: I’m new in our industry,but I’m planing to set up a factory, what can I do?
A2: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to introduce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.

Q3: How long is your warranty? After warranty, what if we encounter problem about the machine?
A3: Our warranty is one year.After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn’t work out, we will send engineer to your factory.

Q4: How can you control the quality before delivery?
A4: First, our component/spare parts providers test their products before they offer components to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.


Q5: Are your machines difficult to operate? How do you teach us using the machine?

A5: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines’functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.

Q6: Can I come to your factory to observe machine running?
A6: Yes, customers are warmly welcome to visit our factory.

Q7: Can you make the machine according to buyer’s request?
A7: Yes, OEM is acceptable. Most of our machines are customized design based on customer’s requirements or situation.
